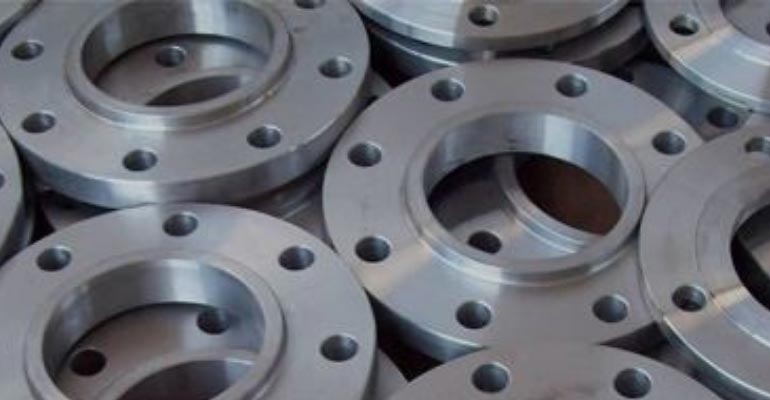

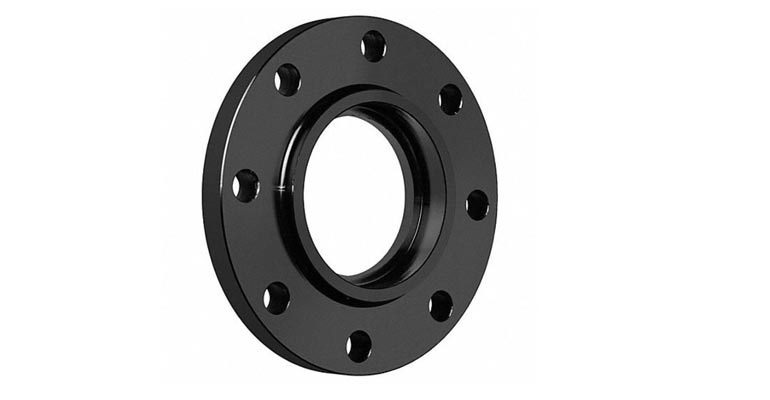

Socket Weld Flange

• Design: A Socket Weld Flange has a cylindrical socket that fits over the end of the pipe. The pipe is inserted into the socket, and a fillet weld is made around the joint to secure it. The flange is then bolted to another flange or fitting.


• Applications: Ideal for small-diameter high-pressure piping systems. It is used where strong joints are required, often in chemical processing, petrochemical, and high-pressure steam applications.


• Installation: The pipe is inserted into the socket, which is then welded around the circumference. This design minimizes the risk of stress concentration and provides a smooth flow path.

Chemical and Mechanical Properties Table

Material	Grade	Chemical Composition (wt%)	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation (%)
Carbon Steel	ASTM A105	C: 0.35 max, Mn: 0.60-0.90, P: 0.035 max, S: 0.035 max	205 - 250	420 - 550	20
Stainless Steel	ASTM A182 F304	C: 0.08 max, Cr: 18.0-20.0, Ni: 8.0-10.5	205 - 310	510 - 720	40
Stainless Steel	ASTM A182 F316	C: 0.08 max, Cr: 16.0-18.0, Ni: 10.0-14.0, Mo: 2.0-3.0	205 - 310	510 - 720	40
Alloy Steel	ASTM A234 WP22	C: 0.12-0.20, Cr: 1.0-1.5, Mo: 0.4-0.6	205 - 275	485 - 620	20
High-Temperature Alloy	ASTM A182 F91	C: 0.05-0.15, Cr: 8.0-9.5, Mo: 0.85-1.05	415 - 485	620 - 825	20

Notes:

• Chemical Composition: Indicates the elements present in the material, such as chromium and nickel in stainless steels, which enhance properties like corrosion resistance.


• Yield Strength: The stress level at which a material starts to permanently deform.


• Tensile Strength: The maximum stress a material can withstand while being stretched or pulled before breaking.


• Elongation: Represents the material’s ductility, indicating how much it can stretch before failure
