Slip-on Flange

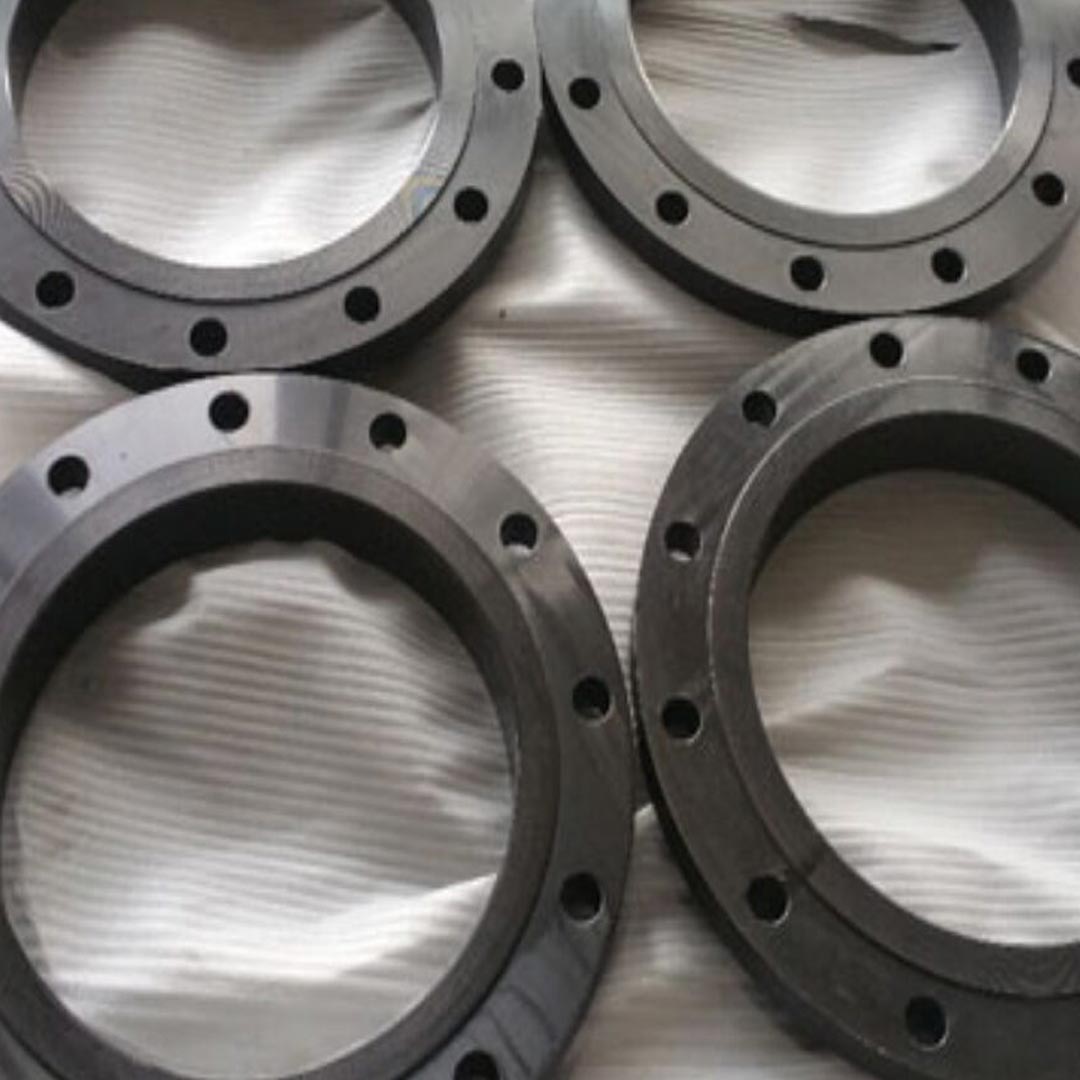

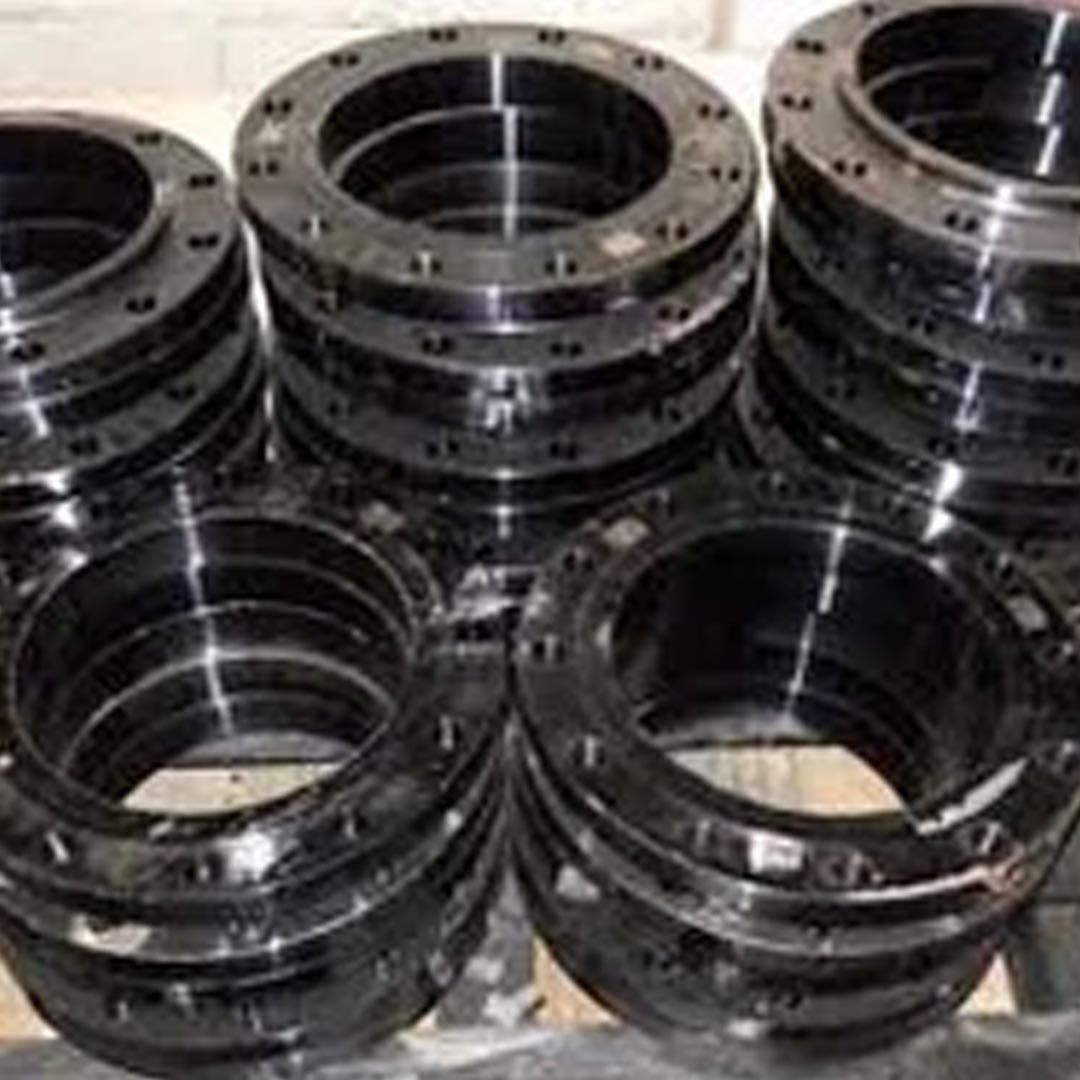

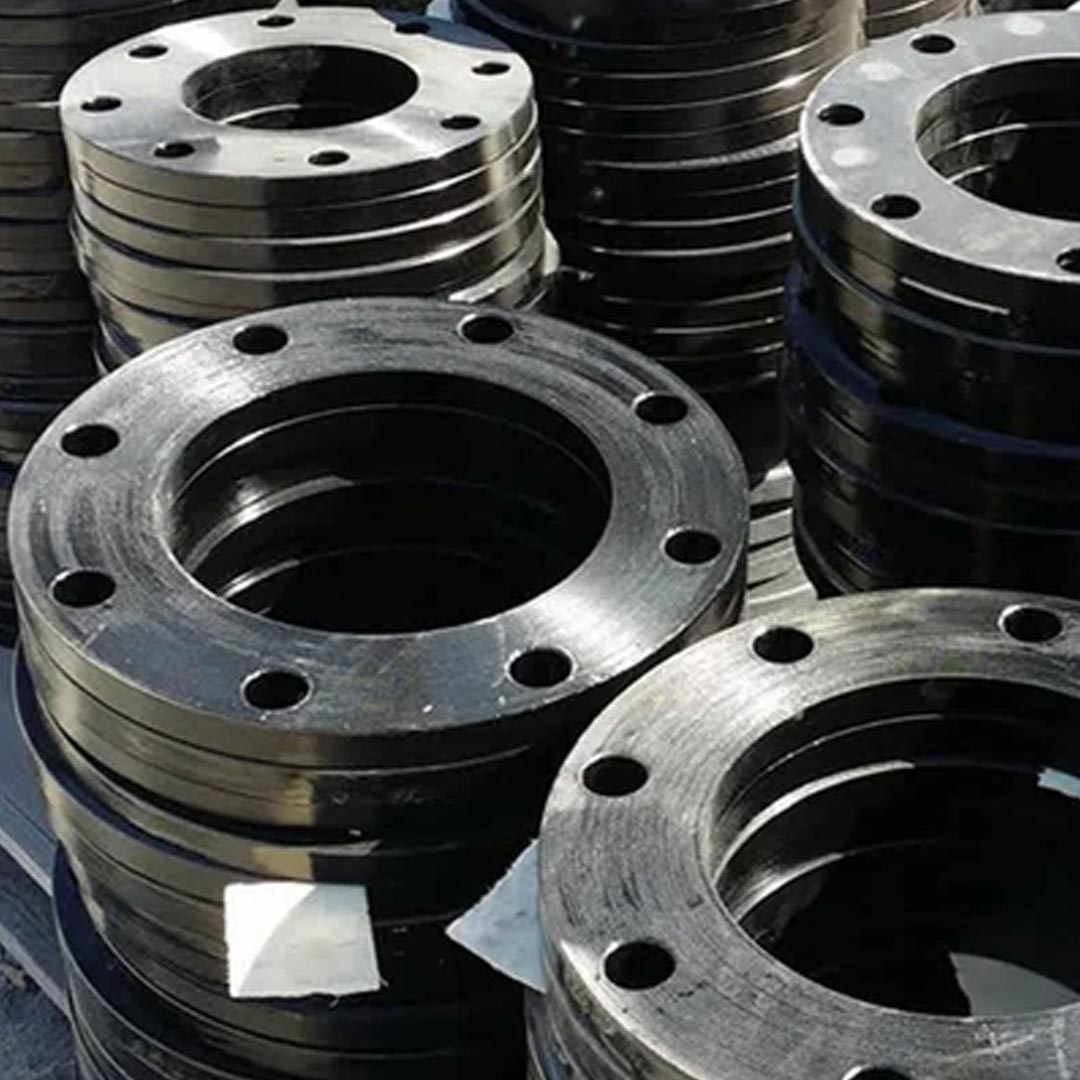

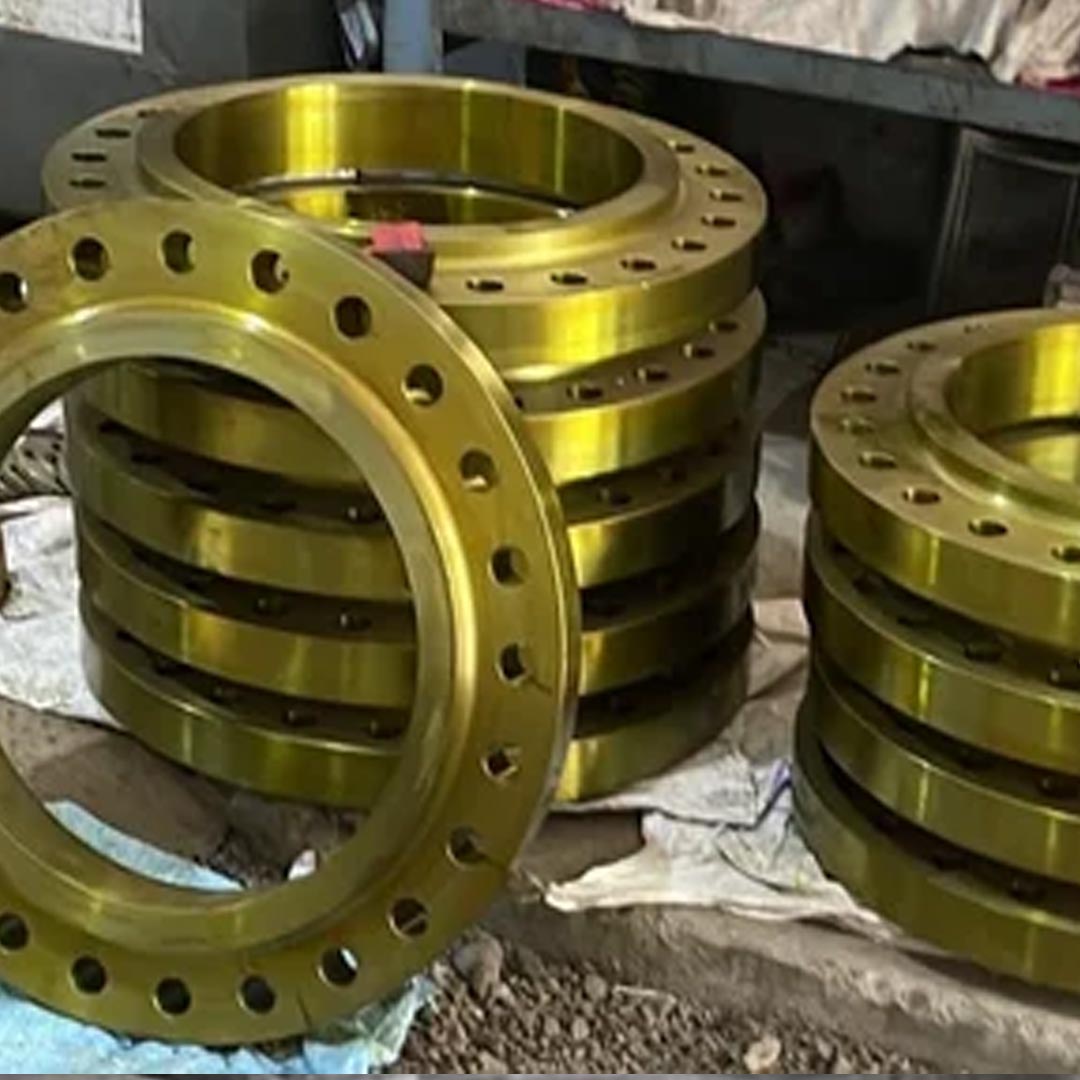

Slip-On Flanges
- Design: These flanges have a flat face with a bore that allows them to slide over the end of the pipe before being welded. They are then usually welded around the top of the flange and inside the bore.
- Applications: Suitable for low to medium pressure applications. They are easier to align than weld neck flanges and often used in low-pressure systems where alignment is not critical.
- Installation: Slip-on flanges are easier to install and align but can be less strong than weld neck flanges, especially in high-pressure or high-temperature applications.
Table D: For Working Steam Pressure upto 50 Ibs per sq. inch
| Nominal Pipe Size | O.D of Pipe | Dia. of Flange | Dia. of Bolt Circle | No. of Bolts | Dia. of Bolt | Thickness |
|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 95.3 | 66.7 | 4 | 12.7 | 4.8 |
| 3/4" | 26.7 | 101.6 | 73.0 | 4 | 12.7 | 4.8 |
| 1" | 33.4 | 114.3 | 82.6 | 4 | 12.7 | 4.8 |
| 1 1/4" | 42.2 | 120.7 | 87.6 | 4 | 12.7 | 6.4 |
| 1 1/2" | 48.3 | 133.4 | 98.4 | 4 | 12.7 | 6.4 |
| 2" | 60.3 | 152.4 | 114.3 | 4 | 15.9 | 7.9 |
| 2 1/2" | 73.0 | 165.1 | 127.0 | 4 | 15.9 | 7.9 |
| 3" | 88.9 | 184.2 | 146.1 | 4 | 15.9 | 9.5 |
| 3 1/2" | 101.6 | 203.2 | 165.1 | 4 | 15.9 | 9.5 |
| 4" | 114.3 | 215.9 | 177.8 | 4 | 15.9 | 9.5 |
| 5" | 141.3 | 254.0 | 209.6 | 8 | 15.9 | 12.7 |
| 6" | 168.3 | 279.4 | 228.6 | 8 | 15.9 | 12.7 |
| 7" | 190.5 | 304.8 | 260.4 | 8 | 15.9 | 12.7 |
| 8" | 219.1 | 336.6 | 292.1 | 8 | 15.9 | 12.7 |
| 9" | 244.5 | 368.3 | 323.9 | 8 | 15.9 | 15.9 |
| 10" | 273.0 | 406.4 | 355.6 | 8 | 19.1 | 15.9 |
| 12" | 323.9 | 457.2 | 406.4 | 12 | 19.1 | 15.9 |
| 14" | 355.6 | 527.1 | 469.9 | 12 | 22.2 | 19.1 |
| 16" | 406.4 | 577.9 | 520.7 | 12 | 22.2 | 19.1 |
| 18" | 457.2 | 641.4 | 584.2 | 12 | 22.2 | 22.2 |
| 20" | 508.0 | 704.9 | 641.4 | 16 | 22.5 | 25.4 |
| 24" | 609.6 | 825.5 | 755.7 | 16 | 25.4 | 28.6 |
Table E: For Working Steam Pressure 50 Ibs upto 100 Ibs per sq. inch
| Nominal Pipe Size | Dia. of Flange | Dia. of Bolt Circle | No. of Bolts | Dia. of Bolt | Thickness |
|---|---|---|---|---|---|
| 1/2" | 95.3 | 66.7 | 4 | 12.7 | 6.4 |
| 3/4" | 101.6 | 73.0 | 4 | 12.7 | 6.4 |
| 1" | 114.3 | 82.6 | 4 | 12.7 | 7.1 |
| 1 1/4" | 120.7 | 87.3 | 4 | 12.7 | 7.9 |
| 1 1/2" | 133.4 | 98.4 | 4 | 12.7 | 8.7 |
| 2" | 152.4 | 114.3 | 4 | 15.9 | 9.5 |
| 2 1/2" | 165.1 | 127.0 | 4 | 15.9 | 10.3 |
| 3" | 184.2 | 146.1 | 4 | 15.9 | 11.1 |
| 3 1/2" | 203.2 | 165.1 | 8 | 15.9 | 11.9 |
| 4" | 215.9 | 177.8 | 8 | 15.9 | 12.7 |
| 5" | 254.0 | 209.6 | 8 | 15.9 | 14.3 |
| 6" | 279.4 | 228.6 | 8 | 19.1 | 17.5 |
| 7" | 304.8 | 260.4 | 8 | 19.1 | 19.1 |
| 8" | 336.6 | 292.1 | 8 | 19.1 | 19.1 |
| 9" | 368.3 | 323.9 | 12 | 19.1 | 20.6 |
| 10" | 406.4 | 355.6 | 12 | 19.1 | 22.2 |
| 12" | 457.2 | 406.4 | 12 | 22.2 | 25.4 |
| 14" | 527.2 | 469.9 | 12 | 22.2 | 25.4 |
| 16" | 577.9 | 520.7 | 12 | 22.2 | 25.4 |
| 18" | 641.4 | 584.2 | 16 | 22.2 | 28.6 |
| 20" | 704.9 | 647.4 | 16 | 22.2 | 31.8 |
| 24" | 825.5 | 755.7 | 16 | 25.4 | 38.1 |
Table F: For Working Steam Pressure above 100 Ibs and upto 150 Ibs per sq. inch
| Nominal Pipe Size | O.D. of Pipe | Dia. of Flange | Dia. of Bolt Circle | No. of Bolts | Dia. of Bolt | Thickness |
|---|---|---|---|---|---|---|
| 1/2" | 21.3 | 95.3 | 66.7 | 4 | 12.7 | 9.5 |
| 3/4" | 26.7 | 101.6 | 73.0 | 4 | 12.7 | 9.5 |
| 1" | 33.4 | 120.7 | 87.3 | 4 | 15.9 | 9.5 |
| 1 1/4" | 42.2 | 133.4 | 98.4 | 4 | 15.9 | 12.7 |
| 1 1/2" | 48.3 | 139.7 | 104.8 | 4 | 15.9 | 12.7 |
| 2" | 60.3 | 165.1 | 127.0 | 4 | 15.9 | 15.9 |
| 2 1/2" | 73.0 | 184.2 | 146.1 | 8 | 15.9 | 15.9 |
| 3" | 88.9 | 203.2 | 165.1 | 8 | 15.9 | 15.9 |
| 3 1/2" | 101.6 | 215.9 | 177.8 | 8 | 15.9 | 19.1 |
| 4" | 114.3 | 228.6 | 190.5 | 8 | 15.9 | 19.1 |
| 5" | 141.3 | 279.4 | 235.0 | 8 | 19.1 | 22.2 |
| 6" | 168.3 | 304.8 | 260.4 | 12 | 19.1 | 22.2 |
| 7" | 190.3 | 336.6 | 292.1 | 12 | 19.1 | 22.2 |
| 8" | 219.1 | 368.3 | 323.9 | 12 | 19.1 | 25.4 |
| 9" | 244.5 | 406.4 | 355.6 | 12 | 22.2 | 25.4 |
| 10" | 273.0 | 431.8 | 381.0 | 12 | 22.2 | 25.4 |
| 12" | 323.0 | 489.0 | 438.2 | 16 | 22.2 | 28.6 |
| 14" | 355.6 | 552.5 | 495.3 | 16 | 25.4 | 31.8 |
| 16" | 406.4 | 609.6 | 552.5 | 20 | 25.4 | 31.8 |
| 18" | 457.2 | 673.1 | 609.6 | 20 | 28.6 | 34.9 |
| 20" | 508.0 | 736.6 | 673.1 | 24 | 28.6 | 38.1 |
| 24" | 609.6 | 850.9 | 781.1 | 24 | 31.8 | 41.3 |
Table H: For Working Steam Pressure above 150 Ibs and upto 250 Ibs per sq. inch
| Nominal Pipe Size | Dia. of Flange | Dia. of Bolt Circle | No. of Bolts | Dia. of Bolt | Thickness |
|---|---|---|---|---|---|
| 1/2" | 114.3 | 82.6 | 4 | 15.9 | 12.7 |
| 3/4" | 114.3 | 82.6 | 4 | 15.9 | 12.7 |
| 1" | 120.78 | 87.3 | 4 | 15.9 | 14.3 |
| 1 1/4" | 133.4 | 98.4 | 4 | 15.9 | 17.5 |
| 1 1/2" | 139.7 | 104.8 | 4 | 15.9 | 17.5 |
| 2" | 165.1 | 127.0 | 4 | 15.9 | 19.1 |
| 2 1/2" | 184.2 | 146.1 | 8 | 15.9 | 19.1 |
| 3" | 203.2 | 165.1 | 8 | 15.9 | 22.2 |
| 3 1/2" | 215.9 | 177.8 | 8 | 15.9 | 22.2 |
| 4" | 228.6 | 190.5 | 8 | 15.9 | 25.4 |
| 5" | 279.4 | 235.0 | 8 | 19.1 | 28.6 |
| 6" | 304.8 | 260.4 | 12 | 19.1 | 28.6 |
| 7" | 336.6 | 292.1 | 12 | 19.1 | 31.8 |
| 8" | 368.3 | 323.9 | 12 | 19.1 | 31.8 |
| 9" | 406.4 | 355.6 | 12 | 22.2 | 34.9 |
| 10" | 431.8 | 381.0 | 12 | 22.2 | 34.9 |
| 12" | 489.0 | 438.2 | 16 | 22.2 | 38.1 |
| 14" | 552.5 | 495.3 | 16 | 25.4 | 41.3 |
| 16" | 609.6 | 552.5 | 20 | 25.4 | 44.5 |
| 18" | 673.1 | 609.6 | 20 | 28.6 | 47.6 |
| 20" | 736.6 | 673.1 | 24 | 28.6 | 50.8 |
| 24" | 850.9 | 781.1 | 24 | 31.8 | 57.2 |

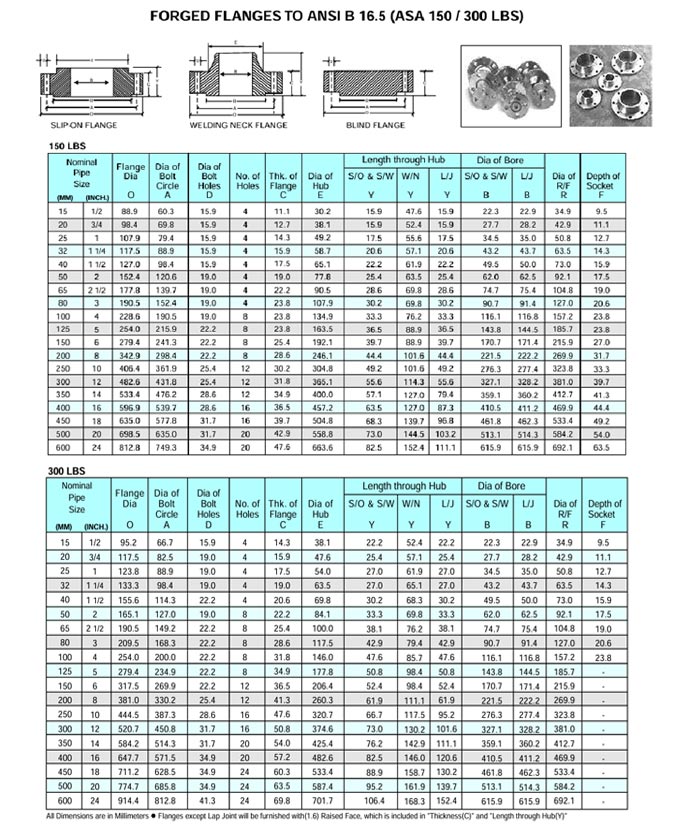

FORGED FLANGES TO ANSI B 16.5 (ASA 150 / 300 LBS)
| Nominal Pipe Size (INCH) | Length through Hub (MM) | Dia of Bore (MM) | Flange Dia (MM) | Dia of Bolt Circle (MM) | Dia of Bolt (MM) | Thickness (MM) | No. of Holes | Depth of Socket (MM) | Flange Hub R/F (MM) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 60.3 | 88.9 | 114.3 | 82.6 | 15.9 | 12.7 | 4 | 22.3 | 30.2 |
| 3/4" | 69.8 | 98.4 | 114.3 | 82.6 | 15.9 | 12.7 | 4 | 27.7 | 38.1 |
| 1" | 79.4 | 107.9 | 120.78 | 87.3 | 17.5 | 14.3 | 4 | 34.5 | 49.2 |
| 1 1/4" | 88.9 | 117.5 | 133.4 | 98.4 | 20.6 | 15.9 | 4 | 43.2 | 58.7 |
| 1 1/2" | 98.4 | 127.0 | 139.7 | 104.8 | 22.2 | 17.5 | 4 | 49.5 | 65.1 |
| 2" | 120.6 | 152.4 | 165.1 | 127.0 | 25.4 | 19.0 | 4 | 62.0 | 77.8 |
| 2 1/2" | 139.7 | 177.8 | 184.2 | 146.1 | 28.6 | 22.2 | 8 | 74.7 | 90.5 |
| 3" | 152.4 | 190.5 | 203.2 | 165.1 | 31.7 | 25.4 | 8 | 90.7 | 107.9 |
| 4" | 190.5 | 228.6 | 215.9 | 177.8 | 36.5 | 28.6 | 8 | 116.1 | 134.9 |
| 5" | 215.9 | 254.0 | 254.0 | 209.6 | 39.7 | 34.9 | 8 | 143.8 | 163.5 |
| 6" | 241.3 | 279.4 | 279.4 | 235.0 | 44.4 | 39.7 | 12 | 170.7 | 192.1 |
| 8" | 298.4 | 342.9 | 304.8 | 260.4 | 49.2 | 44.4 | 12 | 221.5 | 246.1 |
| 10" | 361.9 | 406.4 | 342.9 | 260.4 | 54.0 | 49.2 | 12 | 276.3 | 304.8 |
| 12" | 431.8 | 482.6 | 431.8 | 355.6 | 63.5 | 54.0 | 16 | 327.1 | 365.1 |
| 14" | 476.2 | 533.4 | 476.2 | 381.0 | 69.8 | 63.5 | 16 | 359.1 | 400.0 |
| 16" | 539.7 | 596.9 | 539.7 | 406.4 | 76.2 | 69.8 | 20 | 410.5 | 457.2 |
| 18" | 577.8 | 635.0 | 577.8 | 438.2 | 82.5 | 76.2 | 20 | 461.8 | 504.8 |
| 20" | 635.0 | 698.5 | 635.0 | 495.3 | 88.9 | 82.5 | 24 | 513.1 | 558.8 |
| 24" | 749.3 | 812.8 | 749.3 | 552.5 | 101.6 | 88.9 | 24 | 615.9 | 663.6 |
Chemical and Mechanical Properties Table
| Material | Grade | Chemical Composition (wt%) | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) |
|---|---|---|---|---|---|
| Carbon Steel | ASTM A105 | C: 0.35 max, Mn: 0.60-0.90, P: 0.035 max, S: 0.035 max | 205 - 250 | 420 - 550 | 20 |
| Stainless Steel | ASTM A182 F304 | C: 0.08 max, Cr: 18.0-20.0, Ni: 8.0-10.5 | 205 - 310 | 510 - 720 | 40 |
| Stainless Steel | ASTM A182 F316 | C: 0.08 max, Cr: 16.0-18.0, Ni: 10.0-14.0, Mo: 2.0-3.0 | 205 - 310 | 510 - 720 | 40 |
| Alloy Steel | ASTM A234 WP22 | C: 0.12-0.20, Cr: 1.0-1.5, Mo: 0.4-0.6 | 205 - 275 | 485 - 620 | 20 |
| High-Temperature Alloy | ASTM A182 F91 | C: 0.05-0.15, Cr: 8.0-9.5, Mo: 0.85-1.05 | 415 - 485 | 620 - 825 | 20 |
| Dimensions: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size: | 1/2″ (15 NB) to 48″ (1200NB) |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| BS: | BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 , PN40, etc |
| Table: | D / E / F / H / J / K |
| Api Standards: | PSI-2000/3000/5000/10000/etc |
| JIS Standards: | 2220-2004 5k/10k/16k, etc |
| Flange Face Type: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Notes:
- Chemical Composition: Details the elements present in the material, such as chromium and nickel in stainless steels, which contribute to properties like corrosion resistance.
- Yield Strength: Indicates the stress at which the material starts to deform permanently.
- Tensile Strength: The maximum stress that the material can withstand while being stretched or pulled.
- Elongation: Measures the ductility of the material, representing how much it can stretch before breaking.
